A high-resolution digital scan of the Titanic wreck has revealed critical information about the 1912 maritime disaster. The full-scale model provides new insight into how the ship broke apart after hitting an iceberg.
Advanced Technology Creates Digital Replica
The wreck lies 3,800 metres underwater in the North Atlantic Ocean. Underwater robots captured over 700,000 images. Experts used them to construct a detailed 3D twin of the ship.
This mapping allows for an unprecedented full view of the wreck. Previous expeditions with submersibles could only capture limited visuals due to the deep-sea environment.
Figure 1: The bow sits upright on the seafloor
Structural Damage Offers Clues
The Titanic’s bow remains upright and intact on the seabed. The stern lies 600 metres away, heavily damaged from impact. The scan clearly displays how the ship tore in two.
A detailed view of a porthole smashed by the iceberg matches survivor accounts. Ice had entered cabins during the collision.
Engineers’ Final Efforts Revealed
The scan also highlights one of Titanic’s massive boiler rooms. Boilers appear concave, suggesting they were functioning during submersion.
A valve on the stern deck remains in the open position. This suggests steam was still powering the electrical systems as the ship sank.
Parks Stephenson, Titanic analyst, said: “They kept the lights and the power working to the end, to give the crew time to launch the lifeboats safely with some light instead of in absolute darkness.”
Joseph Bell and his team of engineers kept shovelling coal. Their actions helped preserve light and order until the end.
Figure 2: Stern of the ship
Simulations Confirm Hull Damage
Researchers created a computer simulation using the ship’s original blueprints and navigation data. It confirms the iceberg caused a series of punctures.
Professor Jeom-Kee Paik from University College London led the research. “We used advanced numerical algorithms, computational modelling and supercomputing capabilities to reconstruct the Titanic sinking,” he said.
The simulation shows glancing contact with the iceberg tore several holes in a narrow section of the hull. Each hole was the size of an A4 sheet of paper.
Titanic’s design allowed it to stay afloat if four compartments flooded. The simulation revealed damage across six compartments.

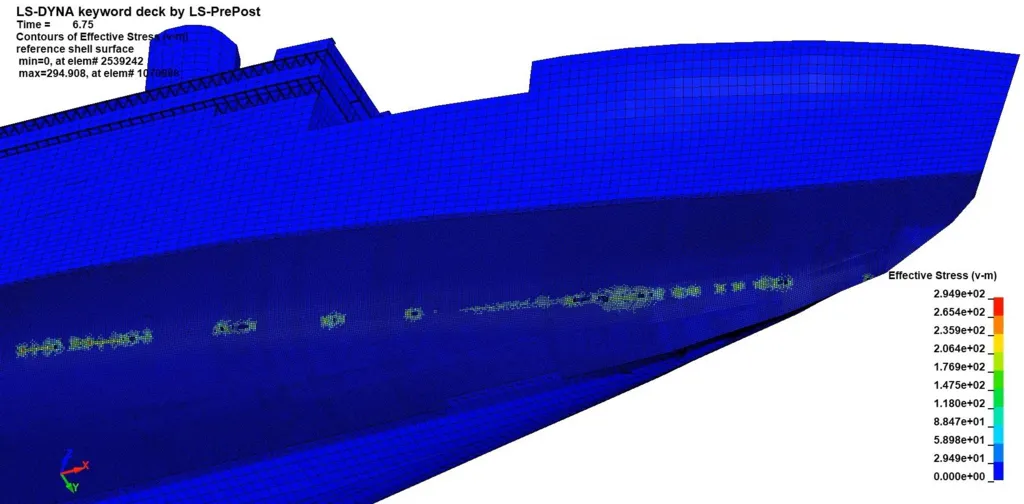

Figure 3: Simulation confirming hull damage
Sinking Caused by Small, Widespread Holes
Simon Benson, a naval architecture lecturer, said: “The difference between Titanic sinking and not sinking are down to the fine margins of holes about the size of a piece of paper.”
Water entered slowly through the punctures. It eventually overflowed the bulkheads and caused the ship to founder.
Unseen Damage Hidden by Sediment
The scan does not reveal all aspects of the hull damage. Sediment covers the lower part of the bow, concealing critical areas.
Despite this, the digital model offers a new understanding of Titanic’s structural collapse and the tragedy’s progression.
Personal Effects Reflect Human Loss
The seabed is still littered with personal items from passengers. The scan captured these artefacts in fine detail.
Stephenson said: “Titanic is the last surviving eyewitness to the disaster, and she still has stories to tell.”
Ongoing Analysis to Continue for Years
Experts estimate it will take years to study every part of the 3D model. Each new detail helps construct a clearer picture of the disaster.
“She’s only giving her stories to us a little bit at a time,” Stephenson added.
Documentary to Showcase New Findings
National Geographic and Atlantic Productions produced a documentary titled Titanic: The Digital Resurrection. It features the scan’s findings and expert analysis.
The film aims to offer a fresh perspective on the Titanic story. It explores the wreck through modern technology and scientific interpretation.
Historical Context Remains Vital
The Titanic struck an iceberg on 15 April 1912. Over 1,500 people died in the disaster. More than 700 survived.
The ship’s fate continues to draw attention from scientists, historians and the public alike.
This digital scan marks a significant step forward in understanding the sinking. The research blends history with innovation to honour the legacy of those on board.
